| Type： | Electric |
| Rated Capacity kg(lb.)： | 1000 (2200) |
| Load Center mm(in.)： | 400 (15.7) |
| Lift Height mm(in.)： | 3100 (122) |
| Free Lift Height mm(in.)： | 1220 (48) |
| Fork Size mm(in.)： | 800×90 (31.5×3.5) |
| Overall Width mm(in.)： | 800 (31.5) |
| Mast Height(Lowered/Raised) mm(in.)： | 1900/3600 (74.8/141.7) |
| Safeguard Height mm(in.)： | 1900 (74.8) |
| Min. Turning Radius mm(in.)： | 1350 (53.1) |
| Ground Clearance mm(in.)： | 90 (3.5) |
| Fork Adjustment Range mm(in.)： | 220～680 (8.7～26.8) |

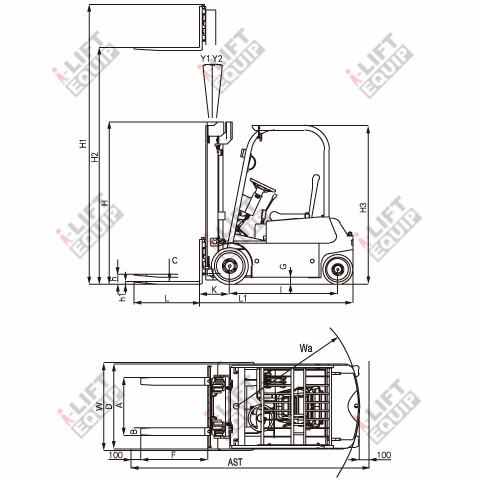

| AST(pallet 800×1200)Lengthways mm(in.)： | 2365 (93.1) |
| Traveling Speed(Loaded/Unloaded) (Km/h)： | 0.4/0.4 |
| Lifting Speed(Loaded/Unloaded) (mm/s)： | 1400/2116.7 |
| Lowering Speed (mm/s)： | Adjustable |
| Net Weight kg(lb.)： | 1550 (3410) |
| Front Wheel mm(in.)： | Rubber,2×φ267×127 (2×φ10.5×5) |
| Rear Wheel mm(in.)： | Rubber,1×φ267×127 (1×φ10.5×5) |
| Driving Motor (Kw)： | 2 |
| Lifting Motor (Kw)： | 2.8 |
| Battery (Ah/V)： | 24/385 |
