Manual Reel Handling Pallet Truck

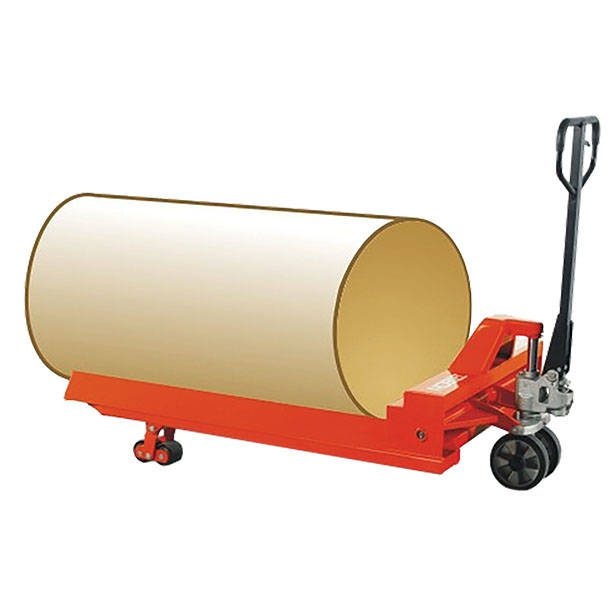

AC20R Manual Reel Handling Pallet Truck is designed for roll transporting (handling roll of paper, carpet,textile or other materials). it is like a hydraulic pallet truck as they have the same working principle: ifting by oil pump and manual moving.
Details of Manual Reel Handling Pallet Truck
▲Reel handling manual pallet truck suitable to handle paper reels, textiles or other materials
▲Heavy-duty hydraulic pump
▲Lowering speed control
▲Overload valve
▲Ergonomic handle with reinforced three-point rubber grip

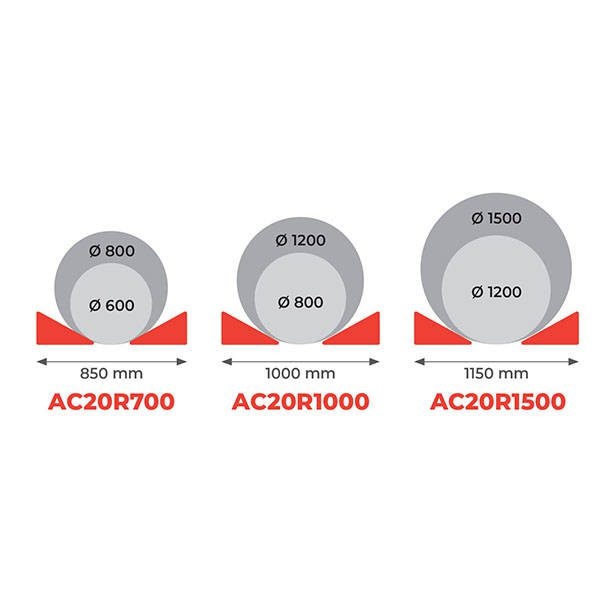

▲Tailored for 3 different load diameters minimum / maximum (mm): 600/800, 800/1200, 1200/1500
▲Available in 3 different widths across forks: 850, 1000 and 1150 depending on the model
Features of Manual Reel Handling Pallet Truck
▲Specially Designed for Reel Transporting
Ideal for handling paper rolls, carpet rolls, textile reels, and other cylindrical materials.
▲Heavy-Duty Hydraulic Pump System
Reliable hydraulic lifting mechanism ensures smooth and efficient load raising with minimal effort.
▲Manual Operation with Hydraulic Lifting
Works on the same principle as a standard hydraulic pallet truck — lifting by oil pump and manual pushing for movement.
▲Lowering Speed Control
Equipped with a controlled lowering system for safe and stable load descent.
▲Built-in Overload Valve
Prevents overloading to protect both the operator and equipment, extending service life.
▲Ergonomic Handle Design
Reinforced three-point rubber grip handle ensures comfortable operation and better control.
▲Multiple Fork Width Options
Available in different widths across forks (850 mm, 1000 mm, 1150 mm) to suit various reel sizes.
▲High Load Capacity
Maximum load capacity of 2000 kg across all models.
▲Compact and Heavy-Duty Structure
Strong frame construction with total weight ranging from 120–130 kg depending on model.
|
