Circular Turntable
▲This circular turntable fits HW electric lifting tables range

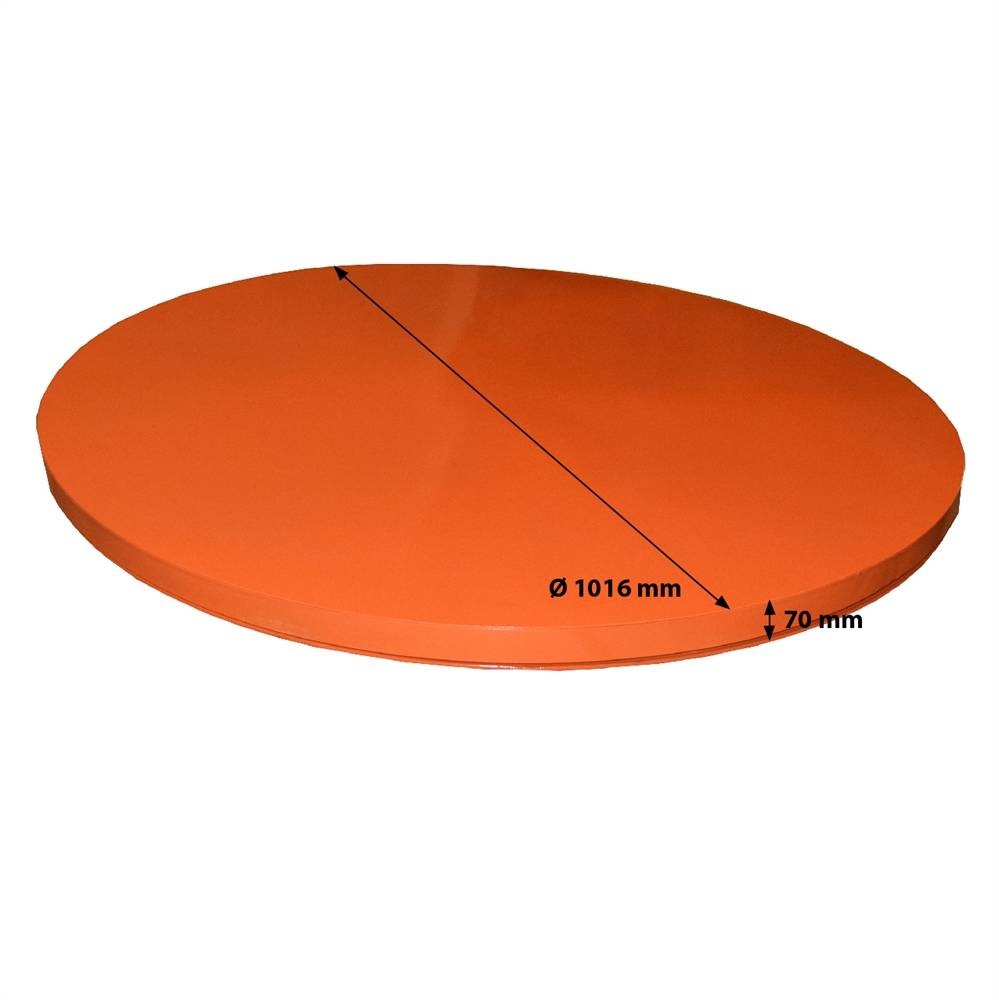

▲Avaialble in 1016 mm or 1220 mm diameter
▲70 mm thick
▲Always make sure the accessory is appropriate for the lift table being used.
Key Features for Enhanced Performance
▲Ergonomic Design: This ergonomic workstation turntable allows operators to rotate materials 360° with minimal effort, significantly reducing the need for bending and stretching. This directly helps in minimizing fatigue and the risk of back injuries during loading and unloading tasks.
▲Heavy-Duty Construction: Constructed from two pieces of rolled structural angle, this heavy-duty circular turntable is built for rugged, long-lasting use. The turntable ring is 70mm thick and available in sizes of 1016mm and 1220mm.
▲Smooth and Stable Operation: A series of sealed ball bearings ensure that the load is transferred smoothly and evenly to the supporting surface. This design allows for seamless 360° pallet or skid rotation.
▲Enhanced Safety: The turntable features an integral safety detent lock which restricts rotation when not in use. This crucial safety feature ensures stability and prevents unintentional movement.
▲Versatile Application: The HW-PTP can be easily added to an existing workbench, scissor lift table, or placed directly on the floor. This flexibility makes it an ideal material handling turntable for various environments, from assembly lines to warehouse packing stations. The low-profile design also allows it to be accessed by a pallet truck, making it perfect for areas where floor space is limited.
▲Customizable Options: While the HW-PTP models are a perfect fit, we offer other models and options to meet your specific needs. We also provide a wide range of accessories and consumables for your lift tables, including self-leveling functions, paint cans, batteries, and oils.
|
